YF-100 SLIT LAMP

LED Light Source Technology
With max lightness of 60,000lx, high efficiency, low attenuation and long life span.
Optimized ergonomics
Interactive improvements, excellent operation experience.

LED Light Source Technology

With max lightness of 60,000lx, high efficiency, low attenuation and long life span.

Optimized ergonomics

Interactive improvements, excellent operation experience.

Rotary-drum 5 Times Magnification

Supports 6.4x/10x/16x/25x/40x magnification.



Classical Galileo microscopic system with visibility compensation of 5D~+5D.

Excellent optical performance with clear, bright and even visual field.

Large visual field eyepiece design, lens adopts multi-layer coating process, easy

to get clear image

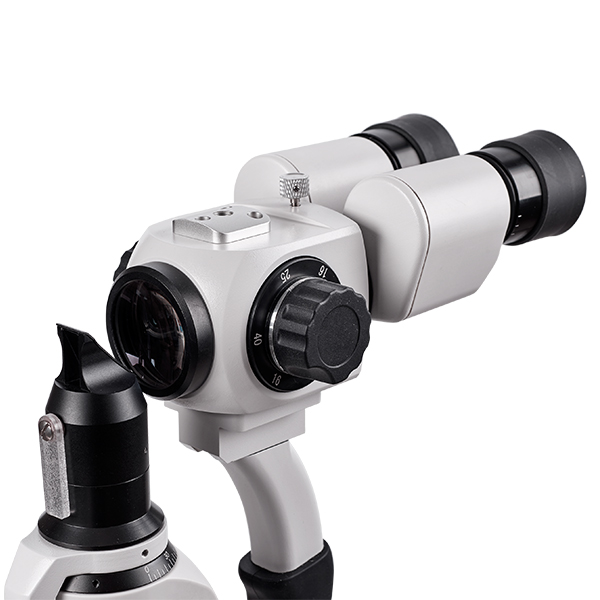

Microscope

Galileo binocular converging

Zoom

5 steps by drum rotation

Total

6.4×/10×/16×/25×/40×

Pupil

55mm~80mm

Visibility

-5D~+5D

Split width

0 mm~14 mm continuous

Split height

1 mm~14 mm continuous

Light spot dia.

ø0.3mm,ø5.5mm,ø9mm,ø14mm

Light filter

Heat aborption, redfree, cobalt blue

Size and weight

630(W)×460(D)×400(H)mm/15kg

Power

Input a.c. 220V, 50Hz,60VA
